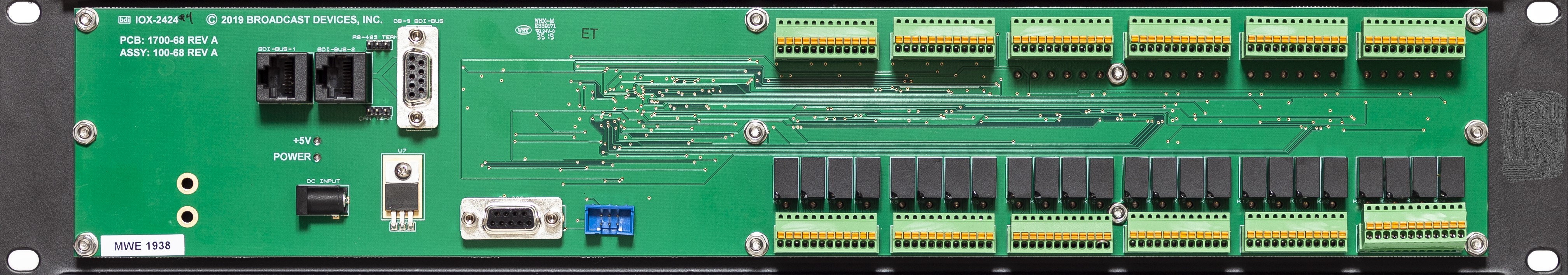

The IOX-24 Expansion Panel is the perfect solution for sites that require more remote control capability. Adding 24 channels of NC/C/NO relay outputs, 24 status inputs that can be configured for low or high going indication and 8 analog inputs for voltage sample inputs. All on one—2 rack unit high panel where it plugs directly into all BDI SWP-200 and 300 series products. If you purchase an SWP-200 series motorized switch controller and want to turn it into a complete remote control system just add the IOX-24 panel by plugging it into the SWP-200 series IOX I/O on it’s rear panel. Already configured and ready to work with the IOX-24. Or if you purchase the SWP-300 series product which provides switch control and basic remote control feature but you need more remote control capability the IOX-24 panel plugs directly into this product as well.
The IOX-24 panel can also be purchased for standalone operation if desired. The IOX-24S is a version of the product that can be purchased to operate standalone and remote control of the product is via SNMP. This version of the product allows for standalone operation or as a peripheral to any SNMP equipped remote control system or software on the market today.
