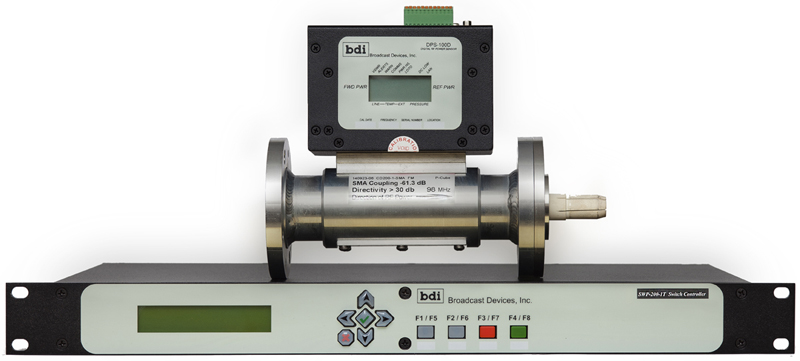

The SWP-200 Digital RF Power Meter/Switch Controller is suitable for digital and analog forward- and reflected-power measurements. The SWP-200 provides complete control of one to up to four RF switches. The SWP-200 can be interfaced to most four port switches and optionally can be provided with interface cables for most four port switches made. The SWP-200 provides one-button control of four port switches, manages interlock closures and transmitter control in a single rack unit chassis. Optional features include RF failure and RF safety sensing to protect a switch from damage if RF is present and a switch command is called for. The SWP-200 can operate in hands-off, pre-programmed mode, or in manually controlled mode. The SWP-200 also can be used in AM radio applications to control multiple open frame contactors. This is a versatile RF support product that provides around-the-clock peace of mind!

Three Simple Steps For Ordering:

1. Frequency of Operation in MHz.
2. Line Size (1-5/8, 3-1/8, 4-1/16, 6-1/8 or custom)
3. RF Power Output In Watts or Kilowatts

Installation is easy, and setup takes just minutes!

Please click below to access:

SWP-200 Data Sheet

SWP-200 Technical Manual

Accessory- DPS-100D Digital RF Power Measurement System

Software Downloads
