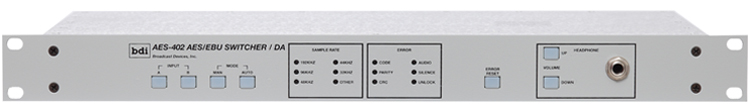

The AES-402 Digital Audio Switcher

The AES-402 is a two-input switcher which can operate automatically. When placed in the automatic mode, the unit monitors the incoming audio stream and can switch to an alternate path on user-selectable error flags, loss of clock or user-defined silence. The unit can be commanded remotely or locally to switch as well.The silence sensor can be set for 30, 60, 90 and 120 seeconds of delay before switching. The selected channel status indicator can even be set to blink to indicate audio level under threshold or loss of audio. All automatic switching functions are user configurable. The unit can be set up for any combination of silence and/or error switching. There is even a setting to disable the front panel switcher and mode select buttons for tamper proof operation. Full GPIO and serial remote control is available on the rear panel. We even included addressable RS-485 remote control so that multiple AES-402 units can be controlled through a single RS-485 control pair.

Please click below to access:

AES-402 Data Sheet

AES-402 Technical Manual

Applications Notes For The AES-300/400 Series

Application Note-AES-300/400 Series-Using the AES-300/400 Series as a source selector at the transmitter site

Application Note-AES-300/400 Series-Using the AES-300/400 Series as a studio routing switcher

Application Note-AES-300/400 Series-Using the AES-300/400 Series as an air monitor switcher for IBOC installations

Application Note-AES-300/400 Series-Interfacing the AES-300/400 Series with the Telos Xstream Digital Audio Codec

Application Note-AES-300/400 Series-Interfacing the AES-300/400 Series with an inexpensive CD/DVD player to provide a backup audio path

Application Note-AES-300/400 Series-Add Automatic Error Reset Upon Switch Command

Application Note-AES-300/400 Series-Enhanced Silence Sensor Operation and Longer Time Delays

Application Note-AES-300/400 Series-Use the AES-300/400 Series to Switch In and Out of Delay to Legacy Analog Transmitters for IBOC Applications
