The 1770 Loudness Monitor

LoudnessMonitor

NEW for 2017! The The 1770 Loudness Monitor is designed to insure content consistency in loudness throughout the physical plant.The 1770 Loudness Monitor is offered as a modular system consisting of a power supply, the audio interface and most importantly the display. The audio interface is placed where it is convenient for connection to either a two-channel stereo analog input or switchable to an equivalent AES digital input. Connection to the display is via a modular supplied cable. The display may then be placed in a convenient area on the operating surface. The ITU BS-1770 document offers a standard by which to monitor program content for today’s challenging audio environment. Each channel to be measured has its own separate path through low frequency roll off and mid frequency shelf equalization and into a RMS detector, which measures the energy content in that channel. The channels are then summed and presented to the indicator as a measure of the loudness content of the combined signals. Click here for more information.



The ATB-300 Audio Toolbox AES Synchronous Audio Switcher

ATB-300

NEW! The ATB-300 Audio Toolbox from BDI is a rack mounted solution to switching and routing in the digital or analog domain. The ATB-300 can be ordered in eight different configurations. The basic configuration is the ATB-300-1 that accepts four AES3 inputs, that can be switched and routed to four AES3 outputs. If analog input is required in addition to AES3, the ATB-300-2 has four analog balanced stereo inputs in addition to the four AES3 inputs. The ATB-300-3 has AES3 I/O and analog output, if AES3 and analog I/0 are required. The ATB-300-4 is analog only L/R I/O and the ATB-300-5 provides four AES3 I/O and four balanced stereo I/O. Click here for more information.

Accessories

Please click here to access the ATB-300 technical manual.



The GPM-300 Series General Purpose Matrix Switcher

AES Synchronous Audio Switcher

GPM-300

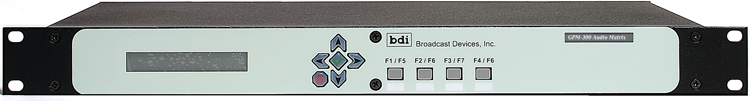

NEW! The GPM-300 Series Matrix Switcher provides a low cost solution to your digital and/or analog audio routing and switching needs. The scalable modular design lets you purchase only what you need with room to expand. DSP architecture provides outstanding flexibility and reliability in a single rack chassis. An example application would be one EAS generator (digital or analog source) connected to the GPM-300 series matrix switcher. The GPM-300 can now switch the single EAS generator source to up to eight studios in your choice of digital/analog audio, or both. Give BDI your audio routing requirement, and let our team provide the solution with this outstanding product.



Ordering Information:


Analog Stereo Pairs
AES Digital Stereo Pairs

(In/Out)
(In/Out)
GPM-300-1
0/0
4/4
GPM-300-2
4/0
4/4
GPM-300-3
0/4
4/4
GPM-300-4
4/4
0/0
GPM-300-5
4/4
4/4
GPM-300-6
0/0
8/8
GPM-300-7
8/4
0/0
GPM-300-8
8/8
0/0

Please click here for more information.

Accessories: GPMRC Remote Control Panel: Remote Control Panel for GPM Series Audio Switchers.

Accessories: Audio Interface Panels

Please click here to access the GPM-300 technical manual.

Application note: Connecting the GPM-300 to the Digital Alert Systems DASDEC



The DAB-300 Series Dual Path IBOC Switcher

DAB-300

NEW! The DAB-300 Series Dual Path IBOC Switcher is ideal for digital audio IBOC routing.
The DAB-300 allows simultaneous synchronous switching of both analog and digital paths, and provides a low cost solution to your digital and/or analog audio routing and switching needs.

The DAB-300 is available in combinations of AES, Analog L/R and composite base band input. The unit can be ordered with any two input standards. The DSP architecture provides outstanding flexibility and reliability in a single rack chassis.

The DAB-300 incorporates a high quality silence detector for efficient, error-free switching upon loss of analog or digital transmitter path audio. Digital broadcasting requires synchronized audio paths and switching. the DAB-300 is designed to provide time-aligned switching of both paths simultaneously automatically or manually.

Analog Stereo Pairs AES Digital Stereo Pairs Configuration Chart:


In
In
Out
Out

1-4
5-8
1-4
5-8
DAB-300-1
AES
AES
AES
AES
DAB-300-2
AES
ANALOG
AES
ANALOG
DAB-300-3
AES
ANALOG
AES
AES
DAB-300-4
AES
COMP
AES
COMP
DAB-300-5
AES
COMP
AES
AES
DAB-300-6
AES
COMP
AES
ANALOG

Please click here for more information.

Accessories: Audio Interface Panels.

Please click here to access the DAB-300 technical manual.



The AES-402 Digital Audio Switcher

AES402

The AES-402 is a two-input switcher which can operate automatically. When placed in the automatic mode, the unit monitors the incoming audio stream and can switch to an alternate path on user-selectable error flags, loss of clock or user-defined silence. The unit can be commanded remotely or locally to switch as well.The silence sensor can be set for 30, 60, 90 and 120 seeconds of delay before switching. The selected channel status indicator can even be set to blink to indicate audio level under threshold or loss of audio. All automatic switching functions are user configurable. The unit can be set up for any combination of silence and/or error switching. There is even a setting to disable the front panel switcher and mode select buttons for tamper proof operation. Full GPIO and serial remote control is available on the rear panel. We even included addressable RS-485 remote control so that multiple AES-402 units can be controlled through a single RS-485 control pair. Click here for more information.

Please click here to access the AES-402 technical manual.



The AES-403 Two Input Automatic Multi Switcher

AES403

The AES-403 is a two input AES3 compatible digital audio switcher or can be configured to accept an analog balanced left/right pair on one channel forming an analog/digital switcher combination. Similar to the BDI AES-402 the unit has a silence sensor and can be programmed to automatically switch to an alternate path in the event of channel loss due to silence or digital errors. Uses include EAS audio injection for plants supporting analog and AES3 audio distribution for broadcast or virtually any application where switching between analog and digital audio paths are desired. Or use as a two input digital switcher, the choice is yours. Click here for more information.

Please click here to access the AES-403 technical manual.



The AES-404 Four Input Digital Audio Switcher

AES404

The AES-404 is a four input AES3 compatible digital audio switcher. A convenient single rack unit digital audio switcher with professional XLR connection throughout. Select channels from the front panel, GPIO or serial remote control. Two AES digital outputs are available for distribution to independent 110 ohm balanced lines. Ruggged RS422 line ddrivers provide excellent driving capability for long lines. The unit features complete error flag information with memory retained to aid in troubleshooting. Slipped sample, CRC error, parity error, coding error and unlock status are available. There is a sample rate indicator included. Click here for more information.

Please click here to access the AES-404 technical manual.



The AES-408 8-Input Hybrid Digital-Analog Audio Switcher

AES-408

Part of a series of digital audio products from BDI the AES-408 Digital Audio Switcher/DA/D to A Converter has features that few switchers have which makes it suitable for broadcast, professional audio, recording, and ENG truck use. Professional switching, distribution, diagnostics and digital to analog conversion all in one package The AES-408 can even manage non audio standard AES formats for switching and distribution. DIP switch programming of functions allows the user to customize which features for use in different audio situations. Lightweight aluminum construction in a standard EIA rack enclosure makes the AES-408 a great solution for portable setups for transportable rack configurations. Another great use is for automation due to the number of inputs and various ways to remote control the unit. Don’t settle for so called low cost solutions that don’t use XLR connectors, require a rack adapter kit or use “wall wart” power supplies. The AES-408 is a single EIA compatible rack enclosed product with a rugged internal power supply. Click here for more information.

Please click here to access the AES-408 technical manual.



The 5.1 Plus Stereo Monitor Controller

5.1 Surround

The 5.1 Plus Stereo Monitor Controller is designed to accept a multi channel 5.1 surround sound mix, and provides metering and one-knob control of the entire surround mix. Perfect for television, movie post production and control room environments where controlling a 5.1 multi channel mix via a single volume knob is needed.
The 5.1 Plus becomes transparent to the mix, but provides excellent metering, and smooth volume control with a spare stereo channel available to monitor a stereo mix, or any other content that you wish to hear in the control room. Please click here for more information.

Accessories

Please click here to access the 5.1 Plus technical manual.



The ACS-400 Audio Controller

ACS-400

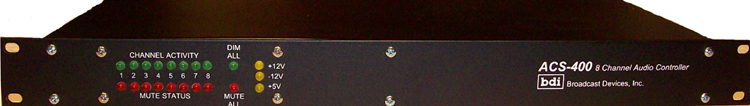

The ACS-400 is an eight channel microphone preamplifier/line input audio controller with programmable remote control of channel level, dim and mute functions. An optional remote control panel is available to provide level and mute control of each channel. The unit can be configured so that one volume control can be used to control six channels for a 5.1 mix and still have a pair of channels for a separate stereo mix, in just one example. Volume control can be programmed for individual channel control or any combination of channels. This product is intended for applications where level management of multiple channels is required or where multiple microphone preamplification channels is required. Each channel is selectable for microphone or line input. All outputs provide nominal +4 dBm balanced output. Click here for more information.

Accessories

Please click here to access the ACS-400 technical manual.



The ACS-300 Audio Controller

ACS-300

The ACS-300 Six Channel Audio Controller was created to meet the demands of today's multi-channel audio environment. The unit is designed to accept six channels of audio and, upon remote control, dim all six channels by 10-, 20- or 30-db. A second command line mutes all channels simultaneously. There are also separate mute command lines for individual or grouped channel muting. The unit can support up to six channels simultaneously, three stereo pairs, or six individual channels. Uses include control of control room or studio monitors for 5.1 multi channel audio systems such as those found in digital television or HD radio applications. The overall dim function can be used for paging or intercom applications where it is desired to reduce the level of an entire monitor system so that page or intercom audio can be heard more clearly throughout a facility. Click here for more information.

For different application notes on the ACS-300, please click here.

Please click here to access the ACS-300 technical manual.



The 8/16 Channel A/B Switcher

8-16 Switcher

The 8/16 Channel A/B Switcher is a passive relay based switcher that accepts two sets of 8 or 16 channels that can be switched between; available in two models: either an 8- or 16-channel configuration. Use in any application where multiple switch connections are needed, such as studio switching, emergency switching or multi-channel audio switching. Simple ground start remote control and status are available from the rear panel. Front panel command and status buttons are standard. All connections are via DB-25 connectors. Signal connections conform to the Tascam D-88 standard for use with standard DB-25 to XLR break out cables, which are also available as an option from Broadcast Devices, Inc. Click here for more information.

Accessories

Please click here to access the 8/16 Channel A/B Switcher technical manual.



Base Band Audio Products

 The LPF-100 Composite Low Pass Filter

LPF-100

NEW! The LPF-100 Composite Low Pass Filter is a modern approach to filtering FM composite base band stereo audio. The LPF-100 offers at least 15 dB of noise reduction at 67 KHz and more than 30 dB of attenuation at 100 KHz. Distortion generated by aggressive processing techniques, noisy STLs and stereo generator birdies can now be suppressed effectively without materially impairing stereo performance. The LPF-100 is a tenth order, linear phase filter approach that is designed to work with any stereo generator output. The unit accepts 3.5 VPP base band audio and provides three level controlled, isolated 3.5 VPP nominal filtered outputs. Click here for more information.

Please click here to access the LPF-100 technical manual.



The CTD-300 Composite To AES3 Converter

CTD-300

The CTD-300 Composite To AES3 Converter allows you to cost-effectively convert an FM stereo composite STL link or analog stereo generator to AES3 for digital implementations. This unit accepts 3.5 VVP base band and converts it to a pair of AES3 outputs for application to digital equipment. Sample rate is adjustable between 32 to 96 KHz and de-emphasis is adjustable for 75 or 50 uS or can be defeated if desired. Click here for more information.

Please click here to access the CTD-300 technical manual.



The CMP-300 Composite Mixer Distribution System

CMP300

The CMP-300 mixes up to three inputs and distributes them to up to three exciters. The unit is perfect for combining FM stereo base band, SCA and RBDS signals together. The combined output is fed to a DA for application to up to three exciters. Combine and save as only one stereo, SCA and RBDS generator can feed multiple exciters. Wide band and DC coupled throughout means excellent stereo SCA and RBDS performance. Combines up to three sources and distributes the mixed output to up to three outputs for cost-effective distribution of FM stereo composite, SCA and RBDS data signals. Click here for more information.

For different application notes on the CMP-300, please click here.

Please click here to access the CMP-300 technical manual.



The CDS-302 Audio Switcher

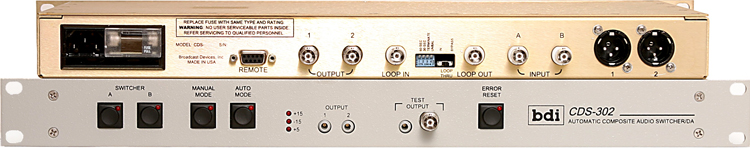

The CDS-302 Automatic Composite Audio Switcher/DA is still the best base band FM stereo management product available. The unit accepts 2 base band inputs and distributes the selected input to 3 base band outputs. The unit incorporates our exclusive RBDS loop through feature for RBDS lock and distribution using only one RBDS generator.  The automatic feature allows for silence detected switchover in the event of an STL failure or processor lockup. For more information click here for the CDS-302 data sheet: Click here for more information.

For different application notes on the CDS-302, please click here.

Please click here to access the CDS-302 technical manual.

Please click here to access the CTD-1 Composite Decoder/AES Generator technical manual.



White Papers

Digital Audio & Broadcast STL Interfacing

Comments Regarding "A Method to Improve Conventional FM Stereo Performance"
